Understanding PointClouds

Posted: July 15, 2024

Introduction to Point Clouds

Point clouds serve as a fundamental data structure within 3D modeling and computer vision, acting as a bridge between the physical world and its digital representation. Essentially, a point cloud consists of data points in space, with each point representing a coordinate on the surface of an object or scene. These points are typically captured using various 3D scanning technologies such as LiDAR, stereo cameras, or photogrammetry.

The core information in a point cloud is composed of x, y, and z coordinates that define the position of each point in three-dimensional space. This allows for the recreation of the shapes and surfaces of objects and environments in a digital format, which can then be manipulated, analyzed, and visualized using computer software.

Point clouds are utilized across numerous industries, including robotics, where they assist machines in perceiving and navigating their environment; construction and architecture, for building information modeling (BIM); cultural heritage preservation, through the digitization of historical sites; and in entertainment, for creating complex visual effects and virtual reality experiences.

The adaptability of point clouds stems from their simplicity and depth. They can range from sparse collections of points to dense meshes that include millions of data points enriched with additional attributes like color and surface normals. Each type of point cloud serves different purposes, from basic spatial mapping to the creation of highly realistic 3D models.

This blog will explore the different types of point clouds based on their characteristics, specifically focusing on how adding attributes like normals and colors can enhance the utility and visual appeal of the digitized data. By understanding these variations, one can appreciate the versatility and power of point clouds in transforming the way we visualize and interact with the three-dimensional world.

Types of Point Clouds

Point clouds can vary significantly in their complexity and the type of data they carry. The fundamental types of point clouds are distinguished by the additional attributes they store beyond the basic XYZ coordinates. Understanding these variations is crucial for anyone working with 3D data, as each type caters to different needs and applications. Let’s explore these types in detail:

1. XYZ Point Clouds

  • Definition: These are the simplest form of point clouds and contain only the spatial coordinates (x, y, z) of each point. Each point represents a single vertex in the 3D space.
  • Use Cases: XYZ point clouds are typically used where the shape and size of an object are the only requirements, such as in rough 3D mapping and basic model generation.
An image from Notion

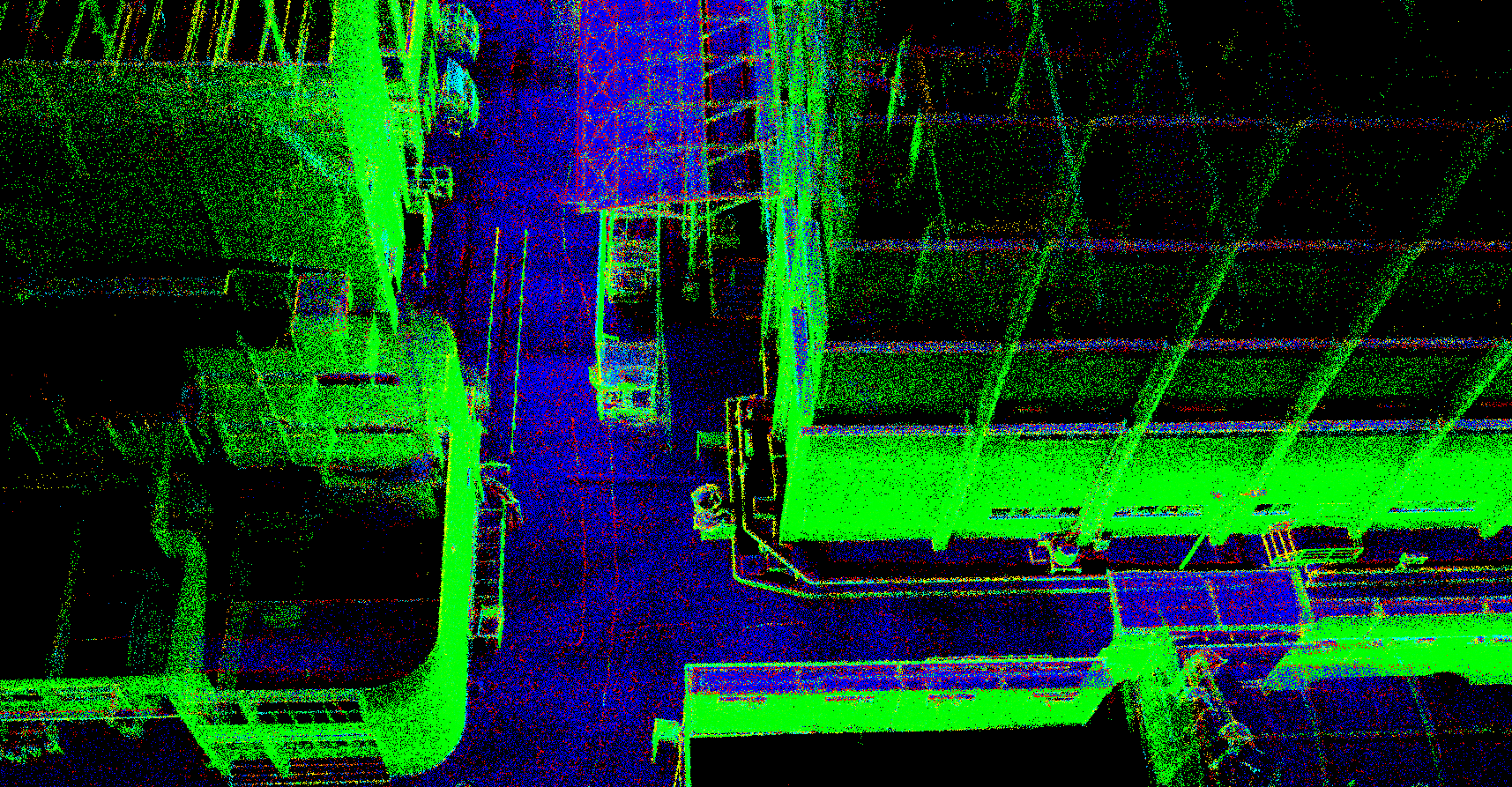

An example for XYZ point cloud.

2. XYZ + Normals Point Clouds

  • Definition: This type of point cloud includes normals along with XYZ coordinates. Normals are vectors that indicate the orientation of the surface at each point, crucial for accurate surface representation.
  • Benefits: Including normals allows for more sophisticated operations like more precise surface analysis and advanced rendering techniques. Normals are essential for algorithms that depend on the surface orientation, such as those used in 3D reconstruction and CAD modeling.
  • Applications: Used extensively in computer graphics, CAD, and more complex industrial design processes where surface orientation enhances the quality of the model.
An image from Notion

An example for XYZ + Normals point cloud.

3. XYZ + Colors Point Clouds

  • Definition: These point clouds carry color data (often RGB) for each point, providing a visual representation that mimics the real-world appearance of the scanned object or scene.
  • Visualization Advantages: Color enhances the visual quality of the 3D model, making it easier for human operators to understand and analyze. Color data can also be used for material identification and aesthetic assessments in models.
  • Use Cases: Ideal for cultural heritage documentation, where visual details are necessary, and in the entertainment industry for creating realistic environments and special effects.
An image from Notion

An example for XYZ + Color point cloud.

4. XYZ + Normals + Colors Point Clouds

  • Definition: The most comprehensive type of point cloud, these include XYZ coordinates, surface normals, and color information, providing a full range of data for each point.
  • Comprehensive Applications: These are used in situations where high detail and accuracy are crucial. The combination of geometric and color information allows for the creation of highly realistic digital models.
  • Industries: Particularly useful in advanced virtual reality applications, high-end simulation, and detailed architectural and archaeological reconstructions.
